All In One Smart Interactive Whiteboard Mali G51 GPU
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL5C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD700-USD1800 per pieces |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Type: | Infrared,Capacitive,interactive Flat Panel,LCD Touch Screen | Interface Type: | USB,D-Sub,DVI,Serial,VGA,HDMI, DP, Etc |
|---|---|---|---|
| Resolution: | 3840*2160 | Screen Size: | 65",55",75inch,86 Inch ,98 Inch |
| Product Name: | Interactive Whiteboard Smart Board,Touch Screen Interactive Flat Panel,Infrared Touch Screen Frame,cheap Touch Screen Monitor Interactive Flat Panel All In One Pc,touch Screen Monitor | Touch Points: | 10 Points,can Be Customized,1~20 Points, 20 Points, 32 Points, 40 Points |
| Color: | Black,black/white/gold/customizable,Silvery/Black | Application: | Teaching,meeting,HOME,training,education |
| Operating System: | WIN2000/XP/Vista/7/8 And More,android8.0,Android 5.0+Win7/10 Option,vista,Android+Win7/10 Optional | Cpu: | A73*2+A53*2 |
| GPU: | Mali-G51 | Brightness: | 350cd/m2 |
| Interface: | USB2.0/3.0,USB/RS232/I2C,AC,USB,HDMI | Warranty: | 1 Year For Panel, And 3 Years For Components |
| Material: | Aluminum Alloy Frame | Viewing Angle: | 178°(H) / 178°(V) |
| Screen Type: | LED,LCD | Function: | Projector,tablet,writingboard,PC,TV |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | All In One smart interactive whiteboard,Mali G51 Smart Interactive Whiteboard |
||
Product Description
LCD Infrared All-In-One Touch Screen Computer Display Smart Interactive Whiteboard
Ⅰ. Description Of All-in-One Touch Screen computer
An All-in-one touch screen computer is a computer driven device, allowing users to access and manipulate electronic files by means of a LCD display. The interactive LCD will be connected to a computer with USB, and the computer then connected back to the LCD with a video cable.It is as known as interactive screen, interactive whiteboard, smart whiteboard, touch screen display, touch monitor, LED touch monitor, touch interactive display, interactive flat panel display, touchscreens , etc.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one.
II. Our Advantage:
14 years' experience on making OEM/ODM interactive flat panels and interactive whiteboard
products sold to more than 80 countires in the world
Own developed Infrared technology
ODM/OEM Support
SKD support
Customized size
Easy for after-sales service
Shortest delivery time
Top quality in this field
Best Value
II. Product Advantage Feacture

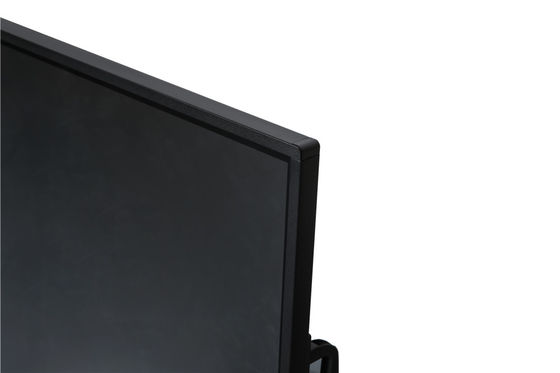

With three side ultra slim bezel, the bezel width is only 10mm, adding the black edge of display area, only 20mm.
With non-air gap (zero gap) glass design, make writing experience very good and actual visual angle wider...
| Model | TE-YL5C-65 | TE-YL5C-75 | TE-YL5C-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 | 1200:1 | 1200:1 | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 8.0 | |||
|
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
||||
| ARM Mali-G51450MHz | ||||
| Ram: 4G | ||||
| Storage: 32G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
| Built in camera | 8 Mega Pixels | |||
| Built in Microphone | 4 array built in microphones | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 10/20 touch points | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Remark: For more details of the specification , please contact us to know more detials.
