4K 60Hz Interactive Touch Screen Monitor Type C For Conference Room
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-XP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 800-950 |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Panel Type: | DLED | Screen Size: | 65'', 75'', 86'', 98'' |
|---|---|---|---|
| Brightness: | 350cd/m2 | Resolution: | 3840*2160@60Hz |
| Display Ratio: | 16:9 | HDMI 2.0: | Support |
| USB 3.0: | Support | DP: | Support |
| Type C: | Support | Status: | New |
| Touch Technology: | Infrared | Touch Points: | 2-32points |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | 60Hz Interactive Touch Screen Monitor,4K Interactive Touch Screen Monitor,60Hz large touch screen monitor for conference room |
||
Product Description

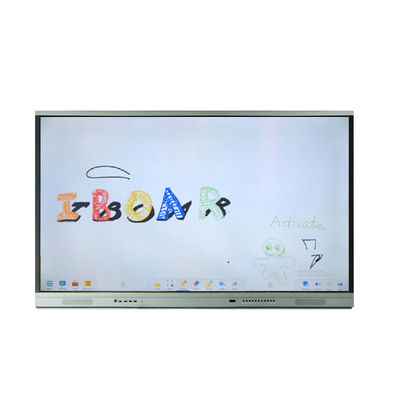

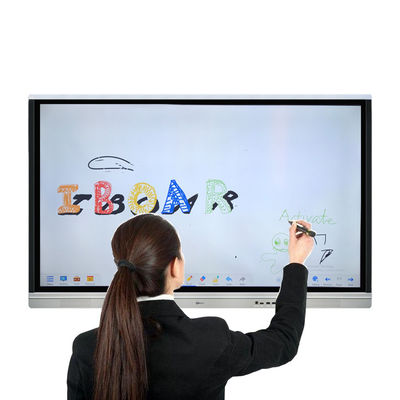

4K 60Hz interactive touch screen monitor with Type C for education and meeting
| Model | TE-XP-65 | TE-XP-75 | TE-XP-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 | 1200:1 | 1200:1 | |
| Screen Size(mm) | 1428,5x803,5mm | 1650x928mm | 1895,04x1065,96mm | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 4K Ultra HD 3840x2160 | |||
|
Android Specification |
Android 8.0 | |||
|
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
||||
| ARM Mali-G51450MHz | ||||
| 2.4 and 5.0GHz WiFi; | ||||
| Ram: 4G | ||||
| Storage: 32G | ||||
| Input Ports |
HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1; USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for Android and PC) x 3; Display Port x1 |
|||
| Output Ports | AV-Out x1; Headphones out; SPDIF x1; HDMI output | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
TE-XP series 4K 60Hz interactive touch screen monitor with Type C for education and meeting is one of iBoard most popular products, front ports with latest Type C port, back port support DP in, can match users different display requirements. Cooperate with high confignration Android 8.0 OS system, give the users from speed, touch feel and outlooking all good feelings. bulit-in DrawView X software for easy writing and make note on different plat forms, give a perfect writing and display environment to the users.
TE-XP series designed with simple structure, whole weight is very light, 65'' net weight no more than 37kgs, very easy for carrying and installation. Latest Infrared touch technology, 10-32points multi touch, high speed and smoothly. Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software, not every supplier can give all system writing software. with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers.
TE-XP series with highest screen display area, black area of scree no more than 2mm, it's the smallest black area in this field. 11 front buttons, the most numbers in the market now, much easier for users operate the machine. Built-in user guide, user can click the guide at the home page, much easier for know how to use the machine. Bulit-in screen share software, support screen projection, make the presentation and teaching much more active and attactive.
