iBoard Wide Screen Aluminium Frame Infrared Interactive Whiteboard 86inch 4k Interactive Panel
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | YL6-86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD900 - USD1800/unit |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Brand Name: | IBoard Or OEM | Product Name: | 86'' Infrared Interactive Flat Panel |
|---|---|---|---|
| Model: | YL6-86 | Size: | 86 Inch |
| Color: | Black And Silver | Material: | Aluminium Frame |
| Screen Type: | LED | Display Ratio: | 16:9 |
| Resolution: | 3840x2160 | Display Area: | 1895.04*1065.96mm(85.6 Inch) |
| Contrast: | 1200:1 | View Angle: | 178° |
| Built-in Camera: | Support 2K Or 4K | Brightness: | ≥350cd/m2 |
| System: | Android 8 | RAM: | 4G |
| ROM: | 32G | Touch Technology: | Infrared Touch |
| Touch Ways: | Finger Or Any Opaque Objects | Touch Points: | 10 Points Or More |
| Support OPS: | One OPS Slot (Optional) | Lifetime: | 50000 Hrs |
| Positioning Resolution: | 32767 X 32767 | Built-in Speakers: | 2*15W |
| Operation Temperature: | 0°C～40°C | Aspect Radio: | 16:10, 16:9... |
| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 65",75",86", 98" |
| Multi-Touch: | Up To 40 Points | Hotkeys: | Two Sides Hotkeys |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Touch Points: | 20 Points |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |

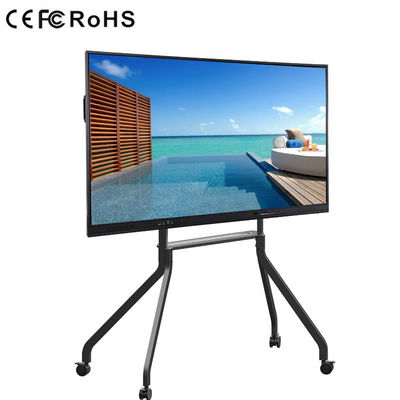

| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight: | 350cd/m2 Infrared Interactive Whiteboard,3840x2160 Infrared Interactive Whiteboard,86in 4k Interactive Panel |
||
Product Description

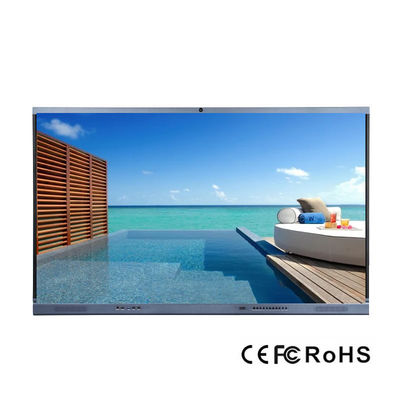

86'' IR Interactive Flat Panel Display
| DISPLAY | |||
| Screen Type | LED | Display Ratio | 16:9 |
| Resolution | 3840(H) x 2160(V) | Display Area | 1895.04*1065.96mm(85.6 inch) |
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors |
| Contrast | 1200:1 | Life Time | 50,000 Hrs |
| ANDROID SYSTEM |
| Android Version | Android 8.0 | GPU | ARM Mali-m51450MHz |
| CPU |
2 * ARM Cortex-A73 2 * ARM Cortex-A53 |
RAM | 4G,(8Gbit×4)；DDR4； |
| Dominant Frequency | 1.5G | ROM | 32G |
| DISPLAY CONNECTION PORTS | |||
| Input Ports (Front) |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object |
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) |
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass |
| Response size | ≥Φ3mm | OS support | Android, Windows, Linux, Mac, Chrome |
| Built-in Camera | Support 2K or 4K |
| Built-in Speakers | 2*15W |
| INTERNET | |||
| Ethernet | 802.3 10/100 | Wifi |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
| Bluetooth | 4.2 | ||

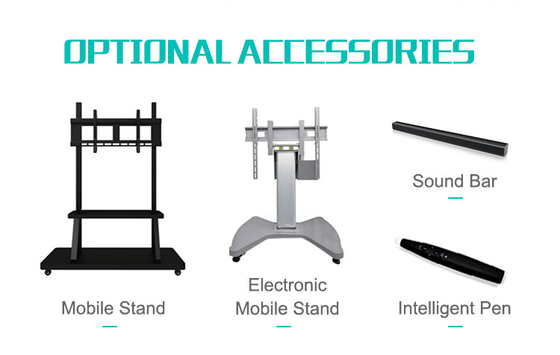

| ACCESSORIES |
| Touch pen x 2 |
| Touch USB (A-B 1.5M) x 1 |
| HDMI cable(2M) x 1 |
| Power cable(1.8M) x 1 |
|
Remote controller x 1 |
| AMBIENT CONDITIONS | |||
| Operation Temperature | 0°C～40°C | Operation Humidity | 10% - 90% |
| Storage Temperature | -10°C～560°C | Storage Humidity | 10% - 90% |
TE-YL6-86
Newly designed model,good outlooking and wide view angle,bring a different new visual experience for presentation.
Interactive display for training, writing annotation, camera display, connecting to an external PC, playing multimedia audio and video.
Ultra Slim Frame, with the newe ultra-slim frame design and modern styling frame width is only 2.04cm, maximising the area used for touch input and displaying vibrant content.
ABOUT US
--Company
Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.
--Certificates
Our products meet the certification requirements of most of countries in the world and have complete certificates.
--Factory
Our factory is 23000㎡, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.
