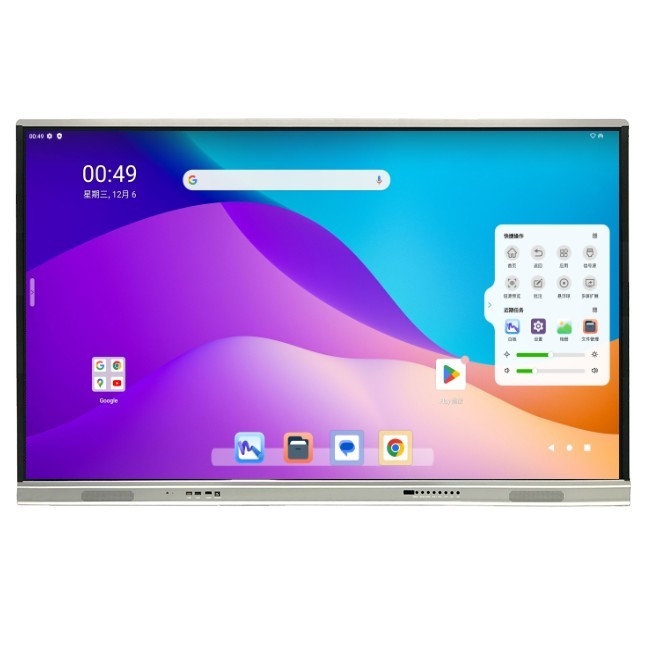

Google EDLA Certificated Android 13 Touch Screen Monitor Interactive Flat Panel Display For Education And Conference
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-QS-86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Feature: | Infrared, LED Panel, Interactive | Response Time: | 5ms |
|---|---|---|---|
| Writing Software: | Yes | Touch Ways: | Finger Or Stylus |
| Glass: | 4mm Tempered Glass | Mac Os: | Mac OSX 10.6/10.7/10.8/10.9/10.14 |
| Accuracy: | <2mm | Contract Ratio: | 5000:1 |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | Interactive Flat Panel Display,Android 13 Touch Screen Monitor,EDLA Certificated Touch Screen Monitor |
||
Product Description
Google EDLA Certificated Android 13 Touch Screen Monitor Interactive Flat Panel Display For Education And Conference
Product Description:
With Google EDLA Certificates with builtin Android 13
With an impressive screen size of 86 inches, this Interactive Monitor ensures that all your presentations, videos, and interactive lessons are displayed in stunning detail. The accuracy of this Interactive Flat Panel is unmatched, with a precision of <2mm, ensuring that every touch is detected with complete accuracy.
The Response Time of this Interactive Flat Panel is an impressive 5ms, making it one of the fastest monitors on the market. This means that every interaction with the monitor is smooth and seamless, without any lag or delay.
When it comes to the product dimensions, this Interactive Touch Screen Monitor is designed to fit perfectly into any workspace or classroom. With dimensions of 1990*1203*113mm, it provides ample screen space while remaining compact and easy to maneuver.
Overall, this Interactive Touch Screen Monitor is the perfect tool for any modern workspace or classroom. It boasts an impressive Android Version, unparalleled accuracy, and lightning-fast response time, making it the go-to choice for all your interactive needs. So why wait? Get your hands on this Interactive Monitor today and take your presentations, lessons, and videos to the next level!
Features:
- Product Name: Interactive Touch Screen Monitor
- Interactive Touchscreen
- Touchscreen Monitor
- Interactive Touch Display
- Mac Os: Mac OSX 10.6/10.7/10.8/10.9/10.14
- Android Version: Android 13 8+128G,16+256G
- Response Time: 5ms
- Screen Size: 86 Inch
- Writing software: Yes
Technical Parameters:
| Product Attribute | Value |
| Product Name | Touch-Sensitive Monitor |
| Product Type | Interactive Monitor |
| Response Time | 5ms |
| Product Dimension | 1990*1203*113mm |
| Glass | 4mm Tempered Glass |
| Writing Software | Yes |
| Contract Ratio | 5000:1 |
| Viewing Angle | 178° |
| Accuracy | <2mm |
| Touch Ways | Finger Or Stylus |
| Mac Os | Mac OSX 10.6/10.7/10.8/10.9/10.14 |
| Android Version | Android 13 8+128G,16+256G |
Specifecation of Interactive Touch Screen Monitor
| Model | TE-QS-65 | TE-QS-75 | TE-QS-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 450 cd/㎡ | 450 cd/㎡ | 450 cd/㎡ | |
| Contrast | 1200:1 or higher | 1200:1 or higher | 1200:1 or higher | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 13.0 | |||
| Ram: 8G/16G | ||||
| Storage: 128G/256G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,...etc | |||
| Built in camera | 13/48 Mega Pixels (Optional) | |||
| Built in Microphone | 6/8 array microphones (Optional) | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points for both android & windows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Applications:
With a minimum order quantity of 10PCS, the iBoard or OEM TE-QS-86 Interactive Touchscreen Monitor comes packaged in a carton box with bubbles for safe and secure transportation. Delivery time is estimated at 25 days after payment confirmation, and payment can be made through T/T, Western Union, or Cash. With a supply ability of 1400pcs/week, this product is readily available to meet the demands of any customer.
The iBoard or OEM TE-QS-86 Interactive Touchscreen Monitor offers two touch ways: finger or stylus, making it ideal for a variety of purposes. The 4mm tempered glass ensures durability and longevity, while the accuracy of <2mm guarantees precision and accuracy in every touch. The 86 inch screen size and 5000:1 contrast ratio offer a large and clear display for any application.
With its advanced touch technology, the iBoard or OEM TE-QS-86 Interactive Touchscreen Monitor is perfect for a variety of occasions and scenarios. In a classroom or training room, it can be used for interactive presentations and engaging lectures. In a business setting, it can be used for video conferencing and collaborative meetings. In a retail or hospitality setting, it can be used for interactive displays and engaging customer experiences.
Overall, the iBoard or OEM TE-QS-86 Interactive Touchscreen Monitor is a versatile and reliable product that is perfect for any interactive touchscreen application. With its advanced features and top-quality performance, it is sure to meet the needs of any customer.
Packing and Shipping:
Product Packaging:
- Interactive Touch Screen Monitor
- Power Cable
- HDMI Cable
- USB Cable
- User Manual
- Installation Guide
Shipping:
- Shipping Method: Standard
- Estimated Delivery Time: 5-7 business days
- Shipping Cost: Free
- Tracking Number: Provided
